Ordinary differential equations (ODEs) 1

• Form of ODE: $$\frac{dy}{dt} = f(y,t)$$
  • (First order ODE)
• Order of an ODE is the highest derivative present.
  • Examples of first, second, third order ODEs?
  • Order of the ODE is different than the $\mathcal{O}$ order of a truncation error.
• Boundary conditions (BCs):
  • Need the same number of boundary conditions as the order of the ODE.
  • For $y=y(t)$, we call the BC an initial condition (I.C.).
    • Most first order ODEs use initial conditions.
    • Doesn’t have to be time
  • The solution $y(t)$ satisfies both the ODE and the BCs.
• Linear ODE: $y$ and all derivatives of $y$ are to the $1^{st}$ power, no products of y with itself or derivatives.
  • $y^{\prime} + \alpha y = f(t)$
    • linear for $\alpha(t)$, but not for $\alpha(y,t)$.
  • $yy^{\prime} + \alpha y = 0$
    • nonlinear
  • $y^{\prime} + \alpha t y = f(t)$
    • linear
• System of ODEs: Multiple dependent variables, one independent variable.
  • $dw/dt = f(w,z,t)$,
  • $dz/dt = g(w,z,t)$.
  • We would normally write these in vector notation: $$\frac{d\vec{y}}{dt} = \vec{f}(\vec{y},t),$$
  • Or, just $$\frac{dy}{dt} = f(y,t),$$ where it’s understood that we are dealing with vector quantities.
  • Here, $f$ is a function that takes a vector of variables and returns a vector of rates of those variables.
• 2 classes
  1. Initial value problems: marching methods, usually time, usually first order ODE.
  2. Boundary value problems:marching or equilibrium methods, usually higher order ODE (2 end points, solutions on spatial domains).
• Physical classes
  1. Propagation: IVP, order $\ge 1$.
  2. Equilibrium: BVP, order $\ge 2$.
  3. Eigenproblems: solutions only for special parameters.

Methods

• Finite difference methods are emphasized here
  • Others include the class of Galerkin methods (finite element…)
• Transform a continuous calculus problem into an algebraic problem.

1. Discretize the independent variable into a grid
2. Approximate derivatives with F.D. approximations (Taylor series).
3. Solve

IVP: focus on single point methods (advance using only the previous point), as opposed to multi-step methods.

Explicit Euler method

• Use a first order forward difference approximation to the derivative $$\frac{y_{k+1} - y_k}{\Delta t} = f(y_k,t),$$

• First order forward difference.

• Explicit since we can solve for the new point explicitly in terms of the old point.

• Taylor Series:

  $$ y_{k+1} = y_k + y_k^{\prime}\Delta t + \frac{1}{2}y_k^{\prime\prime}\Delta t^2 + \ldots$$

• The error per step is $\mathcal{O}(\Delta t^2).$

• The cumulative error is $\mathcal{O}(\Delta t).$

  • If we take $n=t_{end}/\Delta t$ steps, the total error is $k\mathcal{O}(\Delta t^2)=\frac{t_{end}}{\Delta t}\mathcal{O}(\Delta t^2) = \mathcal{O}(\Delta t).$

• Generally, the global error is the order of the F.D. approximation to the derivative.

• So we say that the explicit Euler (EE) method is globally first order accurate.

  • This means that the error is proportional to our step size.

• EE method is very easy to implement in Excel.

Example 1 (EE)

This equation has the exact solution

import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline
from scipy.optimize import fsolve

def ode_EE(f, y0, t):

    ns = len(t)-1
    y = np.empty(ns+1)

    y[0] = y0
    for k in range(ns):
        Δt = t[k+1] - t[k]
        y[k+1] = y[k] + Δt*f(y[k],t[k])

    return y

def myfunc(y,t):
    return -1.1*y

#---------------

y0   = 1
tend = 6.0
t    = np.linspace(0, tend, 20)

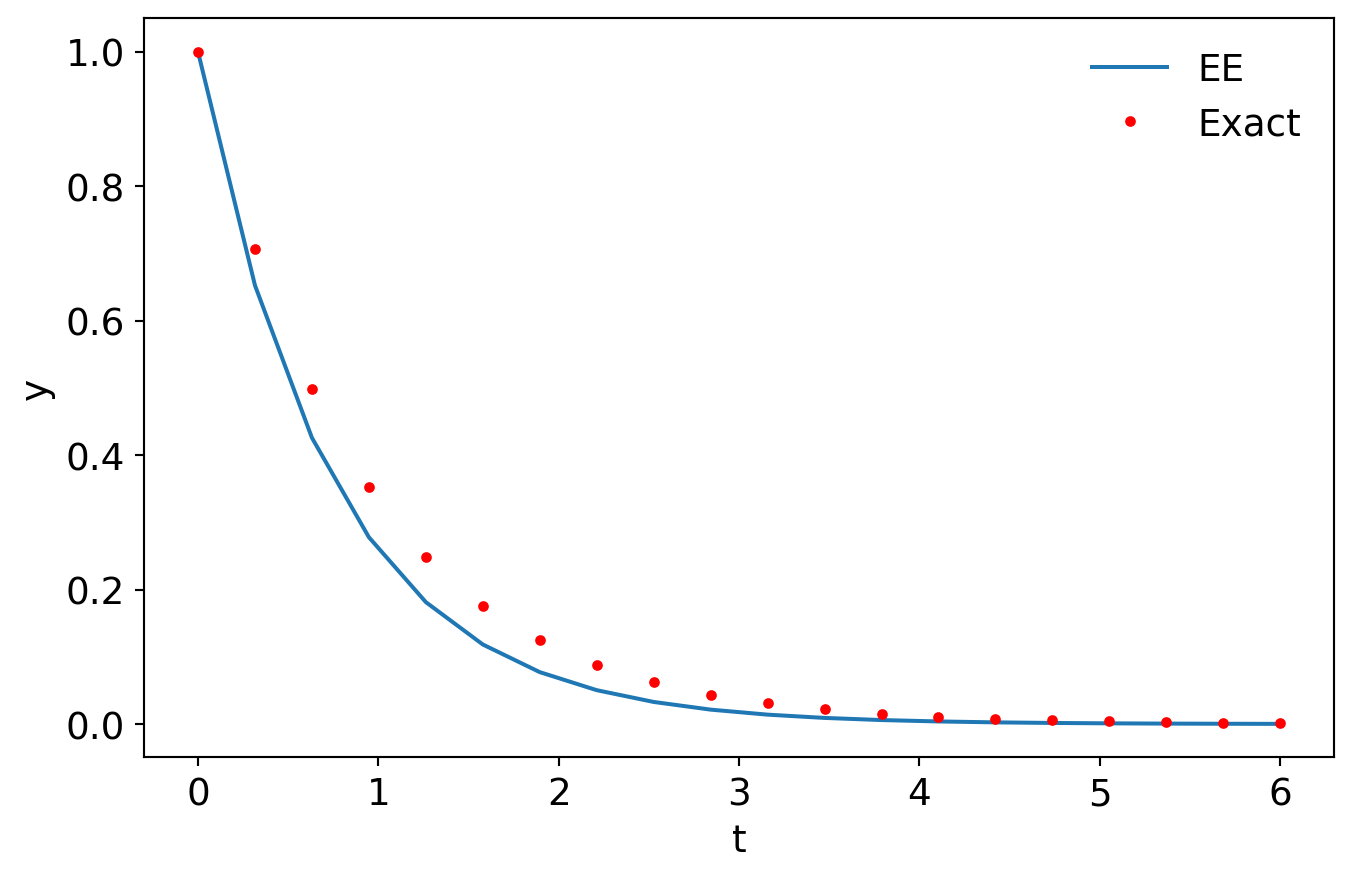

y = ode_EE(myfunc, y0, t)

plt.rc("font", size=14)
plt.plot(t,y)
plt.plot(t, y0*np.exp(-1.1*t), 'r.')
plt.legend(['EE', 'Exact'], frameon=False)
plt.xlabel('t')
plt.ylabel('y');

Implicit Euler method

• Instead of approximating point $y_{k+1}$ in terms of point $y_k$, approximate point $y_k$ in terms of point $y_{k+1}$. $$y_k = y_{k+1} - y_{k+1}^{\prime} \Delta t + \frac{1}{2}y_{k+1}^{\prime\prime}\Delta t^2 + \ldots$$
• This can be rearranged to the following, using $y^{\prime}_{k+1} = f(y_{k+1},t_{k+1}).$

• This is like EE, except instead of evaluating the rate at point $k$, it is evaluated at point $k+1$.
  • This makes the method implicit since the equation for $y_{k+1}$ is implicit in $y_{k+1}$.
• For linear ODEs, the Implicit Euler (IE) method can be solved directly for $y_{k+1}$.
• For nonlinear ODEs, each advancement step requires solution of a nonlinear system of the form $F(y_{k+1}) = 0 = y_{k+1}-y_{k}-\Delta tf(y_{k+1},t_{k+1}).$
• Globally first order accurate: $\mathcal{O}(\Delta t)$.

Example 2 (IE)

• Solve the same problem as we did before: $dy/dt = -ay$ with $a=1.1$ and $y_0=1$.
• Solve the blue IE iteration equation for $y_{k+1}$: $$ y_{k+1} = \frac{y_k}{1+a\Delta t}.$$

y0 = 1
a  = 1.1

tend = 6.0

t = np.linspace(0.0, tend, 20)
ns = len(t) - 1
y = np.zeros(ns+1)
y[0] = y0

for k in range(ns):    # have n points, take n-1 steps
    Δt = t[k+1]-t[k]

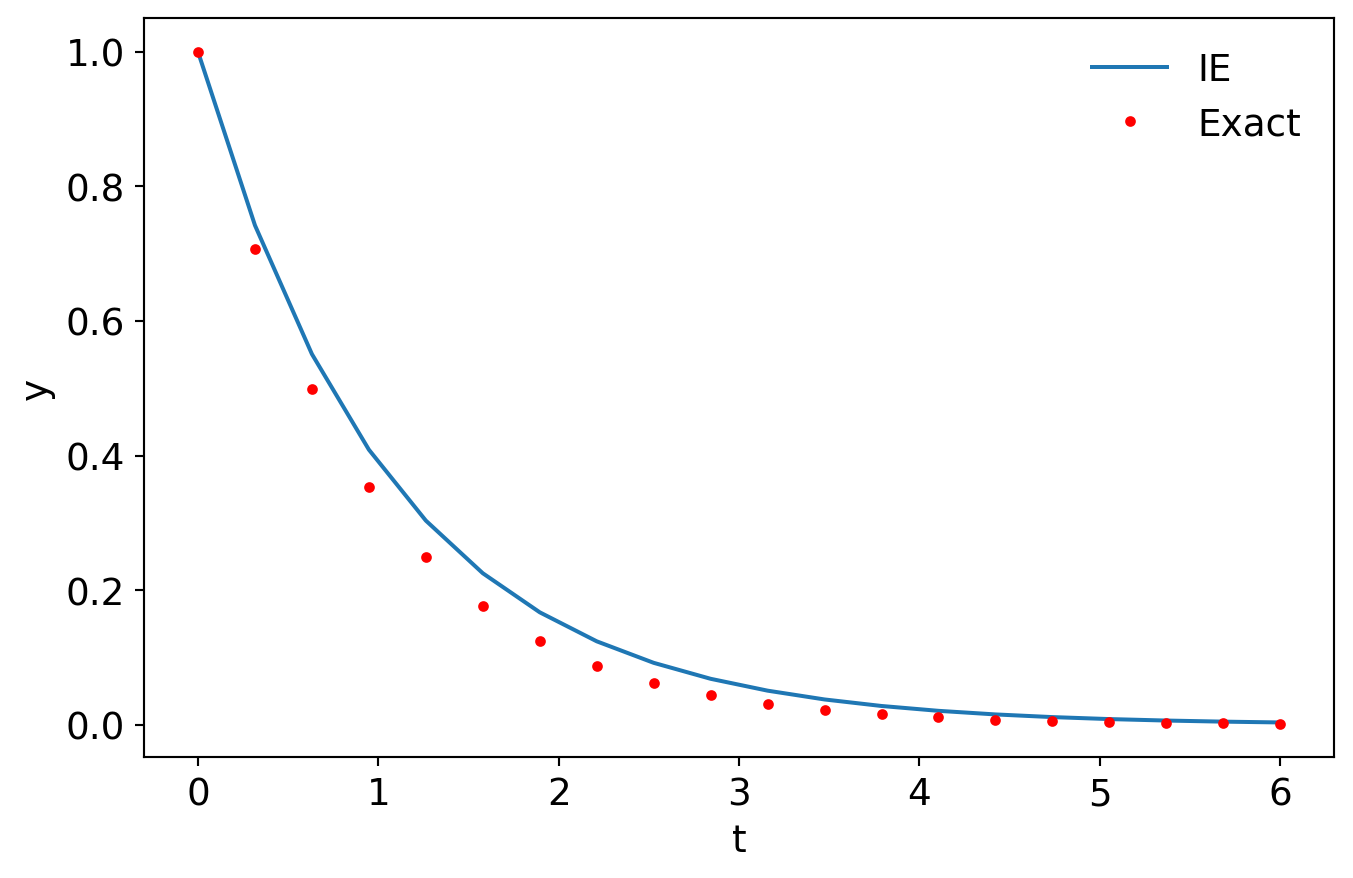

    y[k+1] = y[k]/(1+a*Δt)

plt.rc("font", size=14)
plt.plot(t,y)
plt.plot(t, y0*np.exp(-a*t), 'r.')
plt.legend(['IE', 'Exact'], frameon=False)
plt.xlabel('t')
plt.ylabel('y')

Text(0, 0.5, 'y')

Example 3 (EE, IE nonlinear)

• Solve the following nonlinear ODE using EE and IE $$\frac{dy}{dt} = -y^{0.8},$$ $$y_0 = 1.$$

def ode_IE(f, y0, t):

    ns = len(t) - 1
    y = np.empty(ns+1)
    y[0] = y0

    def F(ykp1):
        return ykp1-y[k]-Δt*f(ykp1,t[k+1])

    for k in range(ns):
        Δt = t[k+1]-t[k]
        y[k+1] = fsolve(F, y[k])[0]

    return y

def myfunc(y,t):
    return -y**0.8

#------------------

y0   = 1.0
tend = 3.0

t = np.linspace(0.0, tend, 20)
n = len(t)

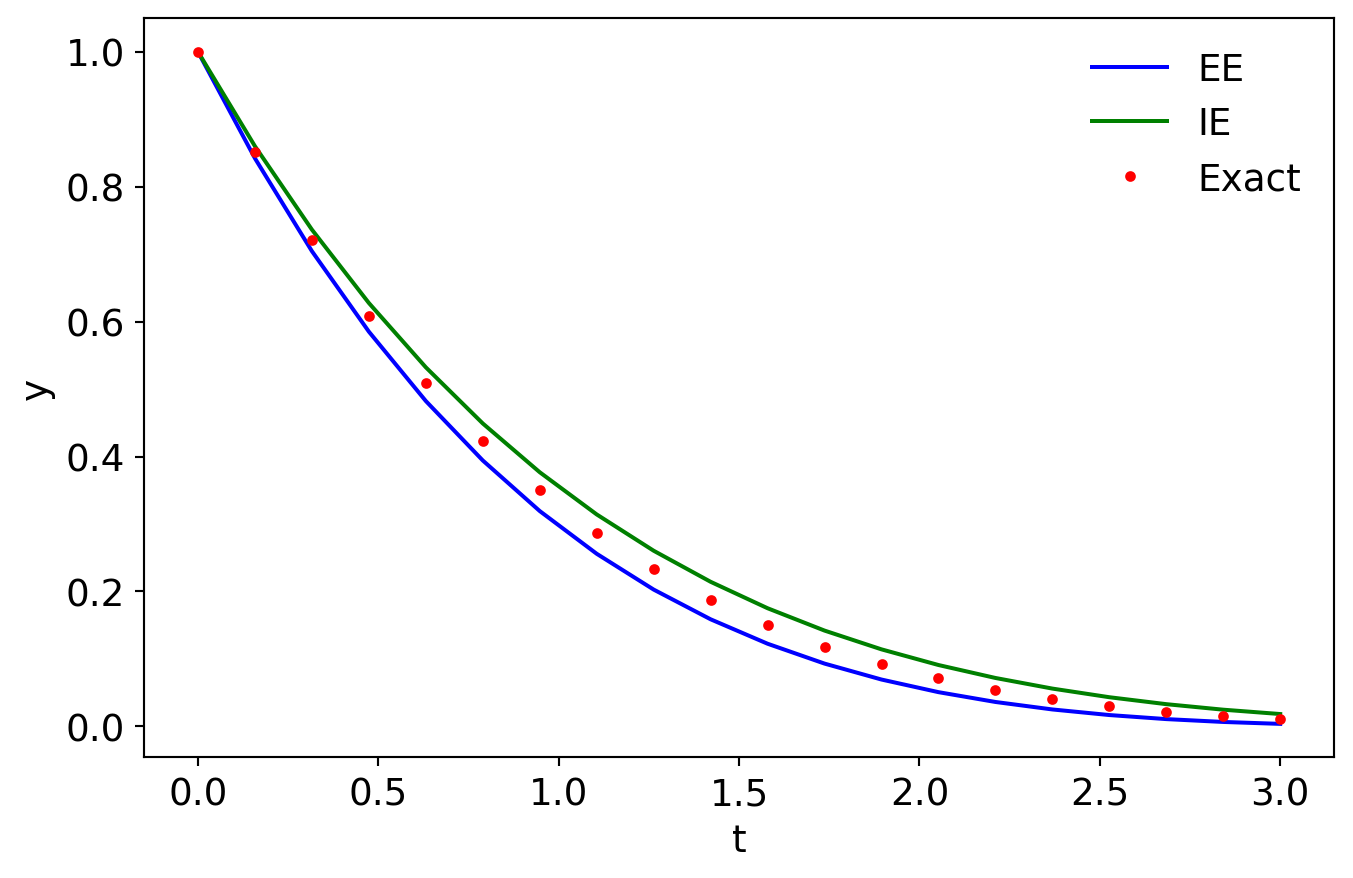

yEE = ode_EE(myfunc,y0,t)
yIE = ode_IE(myfunc,y0,t)

#---------------------

plt.rc("font", size=14)
plt.plot(t,yEE,'b-')
plt.plot(t,yIE,'g-')
plt.plot(t, (1-0.2*t)**(1/0.2), 'r.')
plt.legend(['EE', 'IE', 'Exact'], frameon=False)
plt.xlabel('t')
plt.ylabel('y');
