Monte Carlo Integration

A uniquely different approach to integration is the Monte Carlo (MC) method.

Example: find the area of a circle

To do this, we define a square, whose area we know, that bounds the circle. So, let the side length of the square equal the diameter of the circle.
We conceptually throw darts randomly at the square.
The fraction of the darts that land in the circle multiplied by the area of the square is the area of the circle:
$$A_{circle} = A_{square}\frac{n_{in}}{n_{tot}},$$
where $n_{in}$ is the number of throws that are inside the circle, and $n_{tot}$ is the total number of throws.
A throw consists of selecting a random point in the square. We use a random number generator to get a random x location and a random y location. Call these $r_x$ and $r_y$.
- The radial distance from the center of the circle of this point is $r_r = \sqrt{r_x^2+r_y^2}$.
- If $r_r

import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline

r  = 1.0                          # circle radius
Asquare = (2*r)**2                     # area of square enclosing circle
n  = 1000000                      # number of tries
rx = np.random.rand(n)*2*r - r    # -1 to 1; x locations
ry = np.random.rand(n)*2*r - r    # -1 to 1; y locations

rr = np.sqrt(rx**2 + ry**2)      # radial location
nhits = len(np.where(rr<r)[0])   # number of "hits"
I = float(nhits)/n * Asquare     # integral of circle

Aexact = np.pi*r**2
print('A_mc    =', I)
print('A_exact =', Aexact)

A_mc    = 3.142156
A_exact = 3.141592653589793

Relative Error

The relative integration error of MC methods scales as

$$\epsilon_r \propto\frac{1}{\sqrt{n_{tot}}}.$$

Hence, if you want to decrease your error by a factor of 10, you need to increase the number of throws by a factor of 100.

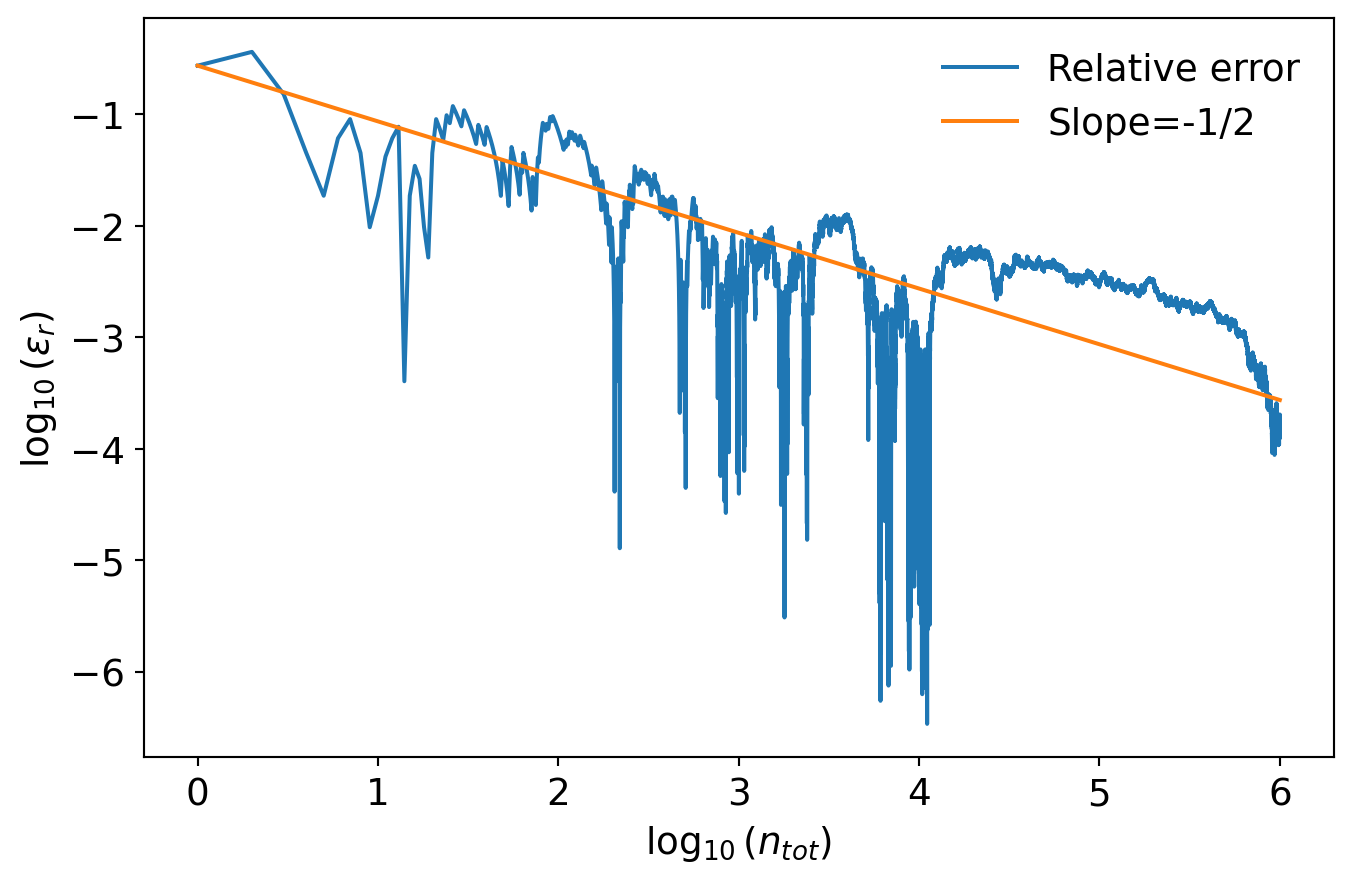

If we plot $\log_{10}(\epsilon_r)$ versus $\log_{10}(n_{tot})$, we expect to get a line with slope $-1/2$. This is illustrated below.

i_n = np.zeros(n)
i_n[rr<r] = 1

itry  = np.arange(1,n+1)
Areas = np.cumsum(i_n)/itry*Asquare
errs  = np.abs((Areas-Aexact)/Aexact)

plt.rc('font', size=14)
plt.plot(np.log10(itry), np.log10(errs));
plt.plot(np.array([0, np.log10(n)]),
         np.array([np.log10(errs[0]), np.log10(errs[0])-0.5*np.log10(n)]));

plt.xlabel(r'$\log_{10}(n_{tot})$');
plt.ylabel(r'$\log_{10}(\epsilon_r)$');
plt.legend(['Relative error', 'Slope=-1/2'], frameon=False);

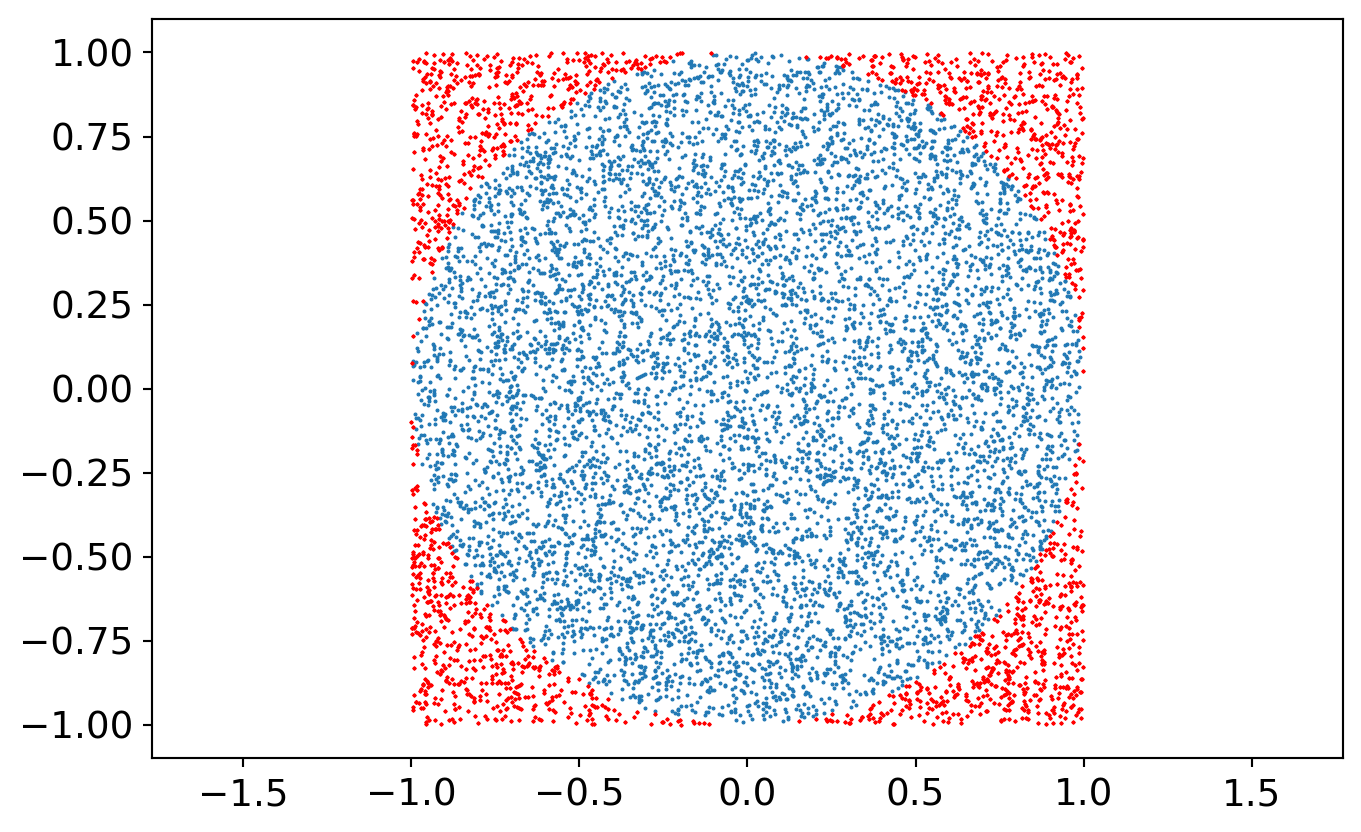

Visual Illustration

r  = 1.0                          # circle radius
As = (2*r)**2                     # area of square enclosing circle
n  = 10000                         # number of tries
rx = np.random.rand(n)*2*r - r    # -1 to 1; x locations
ry = np.random.rand(n)*2*r - r    # -1 to 1; y locations

rr = np.sqrt(rx**2 + ry**2)      # radial location

plt.plot(rx[rr<r], ry[rr<r], '.', markersize=1);
plt.plot(rx[rr>r], ry[rr>r], 'rx', markersize=1);
plt.axis('equal');

Generic function

To integrate a generic function:

$$I = \int_a^bf(x)dx,$$

we define a rectagle whose base is $[a,\,b]$, and whose height is larger than the maximum value of $f$ on $[a,\,b]$.

We through darts in this rectangle by sampling random $(x,\,y)$ points in the rectangle.
For each $x$ we evaluate $f(x)$.
If $y\le f(x)$, then we call the point a hit.
The integral is then

$$I \approx A_{rectangle}\frac{n_{hits}}{n_{tot}}.$$

Example

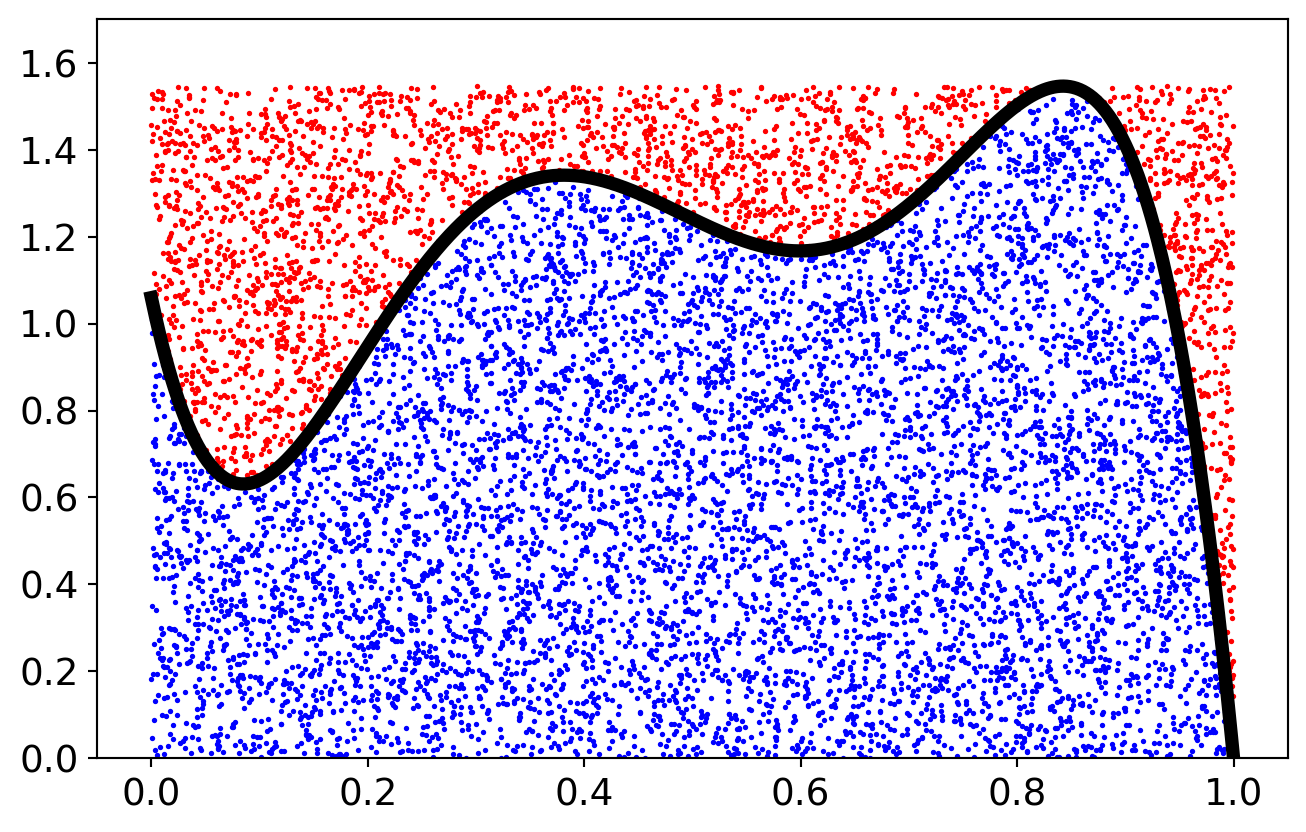

Fit a fifth order polynomial to ten random points. Then integrate this polynomial.

x = np.sort(np.random.rand(10))
y = np.random.rand(10)
p = np.polyfit(x,y,5)
x = np.linspace(0,1,1000)
y = np.polyval(p,x)
yshift = np.abs(np.min(y))
y += yshift

n = 10000
rx = np.random.rand(n)
ry = np.random.rand(n)*np.max(y)
fx = np.polyval(p,rx) + yshift

yhit  = ry[ry<=fx]
xhit  = rx[ry<=fx]
ymiss = ry[ry>fx]
xmiss = rx[ry>fx]

plt.plot(xhit,  yhit,  'b.', markersize=2)
plt.plot(xmiss, ymiss, 'r.', markersize=2)
plt.plot(x,y, linewidth=5, color='black')
plt.ylim([0,1.1*np.max(y)])

Arectangle = 1*np.max(y)
I = Arectangle*len(xhit)/n

Ie = p[0]/6 + p[1]/5 + p[2]/4 + p[3]/3 + p[4]/2 + p[5] + yshift

print("I_mc    = ", I)
print("I_exact = ", Ie)

I_mc    =  1.140563269736279
I_exact =  1.1432022133192445

Uses

Monte Carlo methods are particularly useful for integrating functions in high dimensions.
For example, in combustion systems we often deal with hundreds of chemical species.
- In most turbulent simulations, one cannot resolve all of the turbulent flow structures.
- These unresolved structures are called subgrid.
- An average value of, say, a reaction rate for a given species in a cell that contains subgrid variations is desired. Such an average is computed as
$$\langle\omega_i(\vec{Y})\rangle = \int_{\vec{Y}}P(\vec{Y})\omega_i(\vec{Y})d\vec{Y}.$$
- Here, $\omega_i$ is the reaction rate of species $i$, which is a function of the full chemical state vector $\vec{Y_i}$, which includes all species concentrations, temperature, and pressure. The angle brackets $\langle\cdot\rangle$ denote an average.
- $P$ is the multi-dimensional joint probability density function which can be thought of as the fraction of the subgrid volume occupied by a particular value of the chemical state vector (part of the subgrid may be stoichiometric, other parts pure fuel, other parts pure air, etc.).
The integral is over the full multi-dimensional state space.
- If we had 48 species, then with temperature and pressure, we would have a 50 dimensional integral.
Such an integral cannot be computed using a 50 dimensional grid. Suppose we discretized each dimension with ten points. Then we would have $10^{50}$ total points to evaluate the function at, which is impossible.
Monte-Carlo methods reduce such calculations to manageable levels.
