Advection-Diffusion 2

• We’ve seen how central differences are good for diffusion and not so good for advection.
• We used upwinding for advection to overcome unphysical oscillations.
• Here, we will follow Patankar and take advantage of an exact solution for advection-diffusion problems to build a unique, accurate method.

1-D, steady advection-diffusion equation

or,

• Assume a domain of length $L$ with Dirichlet boundary conditions given $\phi(0)=\phi_0$, $\phi(L)=\phi_L$.

• Let $P_e=uL/\Gamma$.

• Exact solution:

• This equation can be verified by direct substitution in the ODE.
• Note how $\phi$ is centered and scaled on the left side of the equation, so that the left hand side (LHS) of the equation will vary between 0 and 1.
  • We could call the LHS of the equation $\hat{\phi}$.

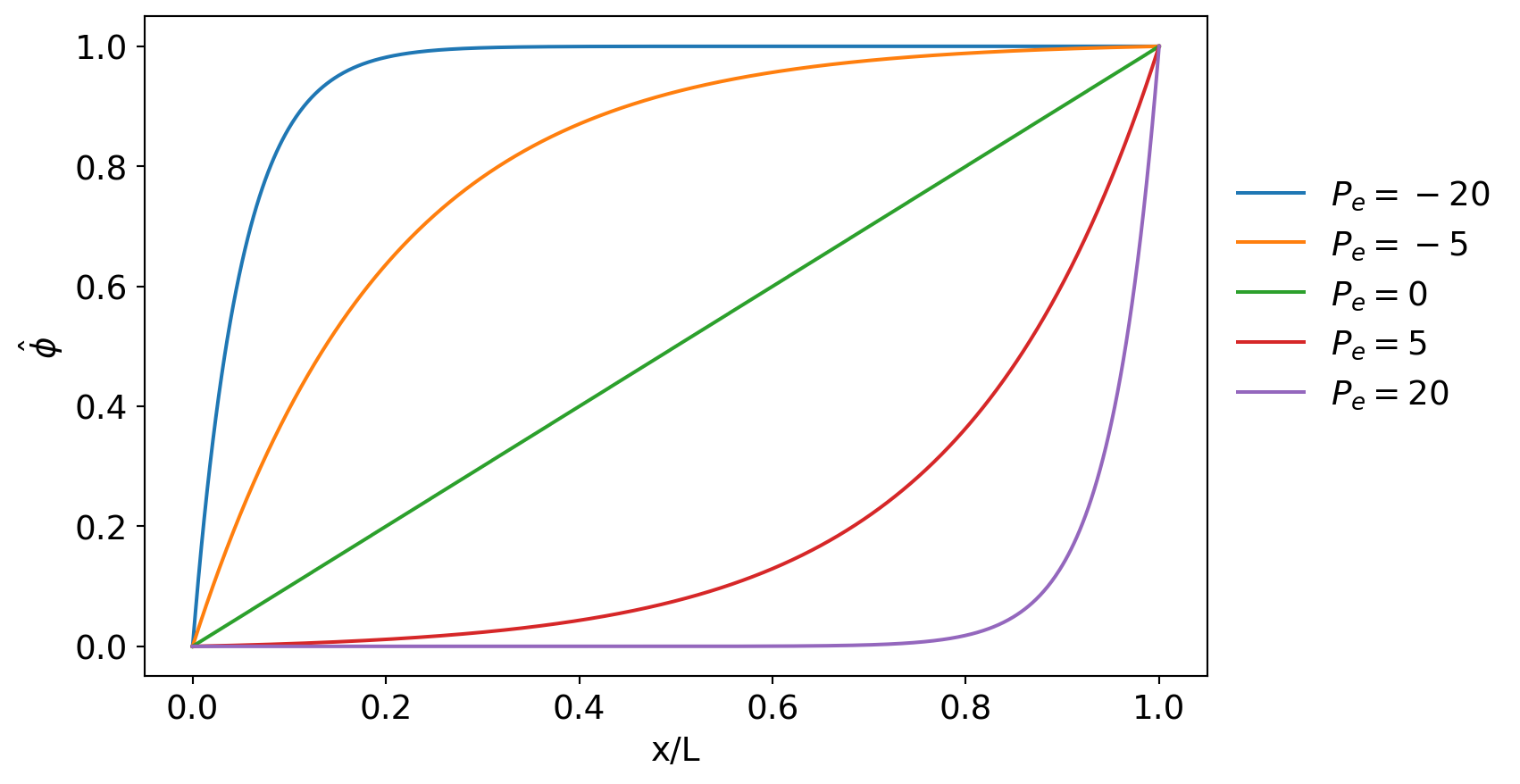

• Examine the equation: $$\frac{\phi-\phi_0}{\phi_L-\phi_0} = \frac{e^{P_ex/L}-1}{e^{P_e}-1}.$$
  • If $P_e=0$, then $u$ is very small compared to $\Gamma$ and we have a diffusion problem.
    • The solution is linear.
  • If $P_e \gg 0$, then $u$ is large in the positive direction and we have positively curved solution where $\phi_0$ persists over most of the domain.
    • The gradient becomes large at the right.
    • This large gradient is needed to offset the relatively small $\Gamma$ so that diffusion can balance advection.
  • For $P_e \ll 0$, $u$ is large in the negative direction and we have a negatively curved solution where $\phi_L$ persists over most of the domain.
    • The gradient becomes large at the left.
    • Again, this large gradient is needed to offset the relatively small $\Gamma$ so that diffusion can balance advection.

import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline

xL = np.linspace(0,1,1000)
def phihat(xL, Pe):
    return (np.exp(Pe*xL)-1)/(np.exp(Pe)-1)

plt.rc('font', size=14)
plt.plot(xL, phihat(xL,-20),   label=r'$P_e=-20$')
plt.plot(xL, phihat(xL,-5),    label=r'$P_e=-5$')
plt.plot(xL, phihat(xL,1E-12), label=r'$P_e=0$')
plt.plot(xL, phihat(xL,5),     label=r'$P_e=5$')
plt.plot(xL, phihat(xL,20),    label=r'$P_e=20$')
plt.legend(frameon=False, bbox_to_anchor=(1.0, 0.8))
plt.xlabel('x/L')
plt.ylabel(r'$\hat{\phi}$');

• Central differencing assumes the profile is linear (diffusion)
• Upwinding assumes the profile is constant (advection)
• Both of these are reasonable approximations in the limit of diffusion or or advection.
• We can use the exact solution to tell us how to choose the $\phi$ profile between the points.

For mixed problems, we can do better by using the exact solution to construct an exact finite difference method.

Hence, our equation is

For finite volume we have

• For a given face $e$, its right neighbor is E and its left neighbor is P.

• Take these as known boundary conditions of the exact solution where $L=\Delta x$ is the grid spacing.

• Solve our exact equation for $\phi$ and its derivative:

• Here, we are defining $\gamma$ for convenience.
• Now, we can insert these for $\phi_e$ and $(d\phi/dx)_e$ in our expression for $F_e$ above:

Here, we are using $(x/\Delta x)_e=1/2$, that is Practice A, where the face is midway between grid points. The above expression simplifies nicely (by cancellation of the exponential terms) to

Now, we insert $\gamma$, and repeat all of this for $F_w$ to obtain

• We’re extending our notation so that now $P_e$ is the Peclet number on the east face and $P_w$ is the Peclet number on the west face.
• Also, we don’t need a uniform grid, in defining the Peclet number, the length is the distance between grid cells splitting the respective face of interest.

Finally, for $F_e-F_w=0$ we can write our scheme in terms of coefficients of $\phi_W$, $\phi_P$ and $\phi_E$:

Question:

If we know the exact solution, why bother going through the effort to use it in a finite volume method using a grid? Why not just use the solution?

We can use this method to treat the combined advection and diffusion fluxes $F$ for more complicated situations that we don’t know (or don’t want to find) the exact solution for. For example: * Multi-dimensional, * Unsteady, * Complex source term.

Exponentials are expensive

• Exponentials are computationally expensive to compute.

  • See this site, for example

• Replace the exponential terms in the above coefficients with polynomial approximations.

  • The exponential terms above all look like
  $$\frac{u}{e^P-1} = \frac{\Gamma}{\Delta x}\frac{P}{e^P-1}.$$

• Consider the last exponential term, call it $T$:

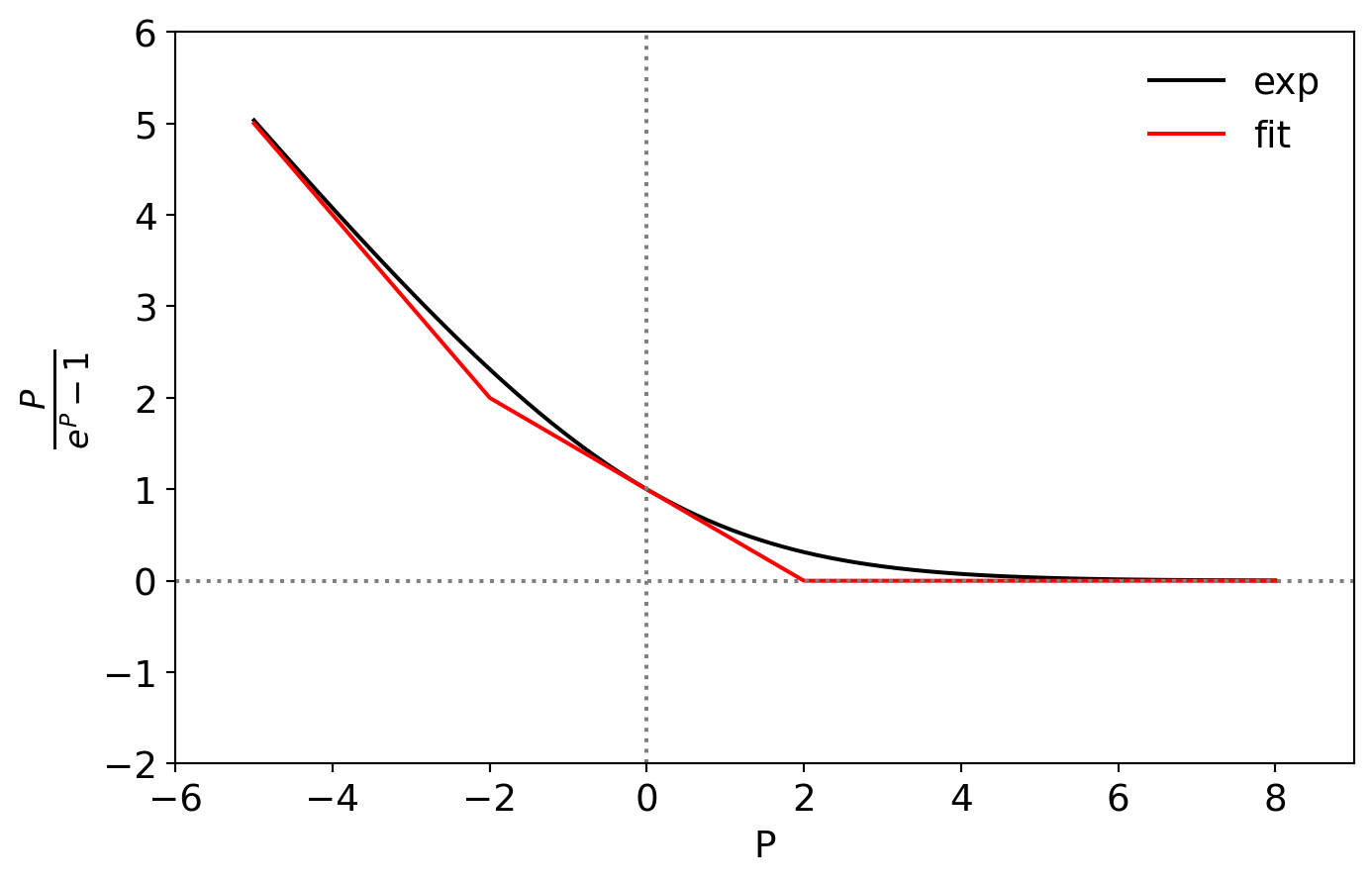

• Patankar gives a non-exponential curve fit called the Hybrid Scheme:
  • $T=-P$ for $P<-2$
  • $T=1-P/2$ for $-2\le P \le 2$.
  • $T=0$ for $P>2$
• Patankar also gives a smoother polynomial fit (not shown here).

P = np.linspace(-5,8,1001)      # 1001 to avoid 0 in the list
T = P/(np.exp(P)-1)

Tfit = np.zeros(len(P))
Tfit[P<=2] = 1-0.5*P[P<=2]
Tfit[P<-2]     = -P[P<-2]

fig, ax = plt.subplots()
ax.plot(P,T,    'k-', label='exp')
ax.plot(P,Tfit, 'r-', label='fit')
plt.ylim([-2,6])
plt.xlim([-6,9])
ax.axvline(x=0, color='grey', ls=':')
ax.axhline(y=0, color='grey', ls=':')
plt.ylabel(r'$\frac{P}{e^P-1}$', fontsize='18')
plt.xlabel('P')
plt.legend(frameon=False);
